        Home All Products FD Model Concrete Mixer
        Tilting Drum Concrete Mixer

        FD Model Concrete Mixer

        Basic Parameters

        Drum Capacity : 800L

        RPM of Drum ：18-25

        LowerDrumThickness ：4mm

        UpperDrumThickness ： 3mm

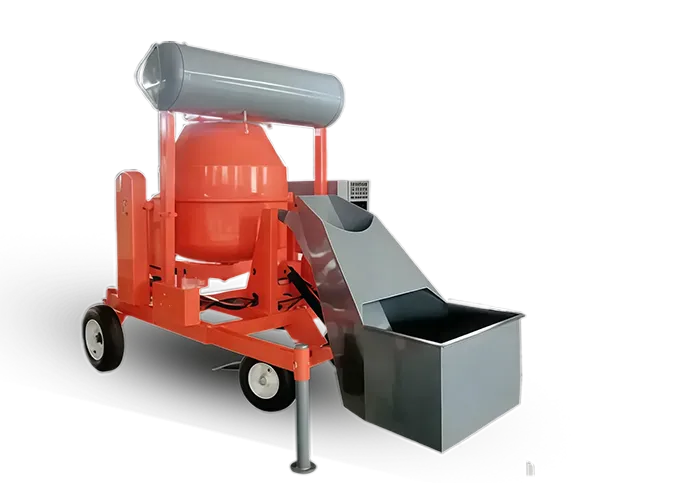

        FD8002

        • Product Information

          Suitable for batching concrete/cement , mixing seed /feed ,as well as numerous industrial use.
          Solid and durable drum construction

          It is designed to efficiently mix cement, aggregates, and water in the appropriate proportion, resulting in high-quality concrete.

          • High-quality concrete production: The concrete mixer ensures a consistent and uniform mixture, resulting in superior quality concrete for your construction projects.
          • Time-saving: By efficiently mixing the components, the mixer reduces the overall mixing time, allowing you to complete your projects faster.
          • Cost-effective: The reliable performance and durability of the mixer minimize maintenance and repair costs, providing long-term savings.
          • Versatile: The mixer can be used for various applications, including residential, commercial, and industrial construction projects.
          • Increased productivity: With its efficient mixing capabilities, the concrete mixer enhances productivity on the job site, enabling you to accomplish more in less time.

          Concrete mixer for reliable performance, durability, and exceptional concrete production. Whether you are a professional contractor or a DIY enthusiast, our concrete mixer is the perfect solution for all your concrete mixing needs.

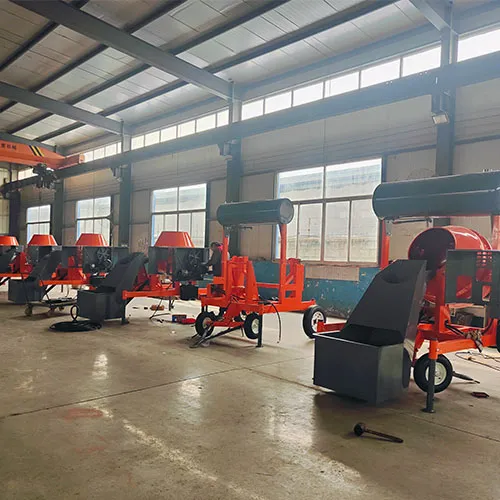

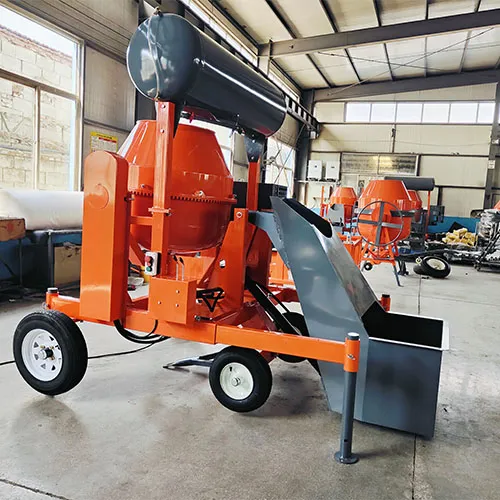

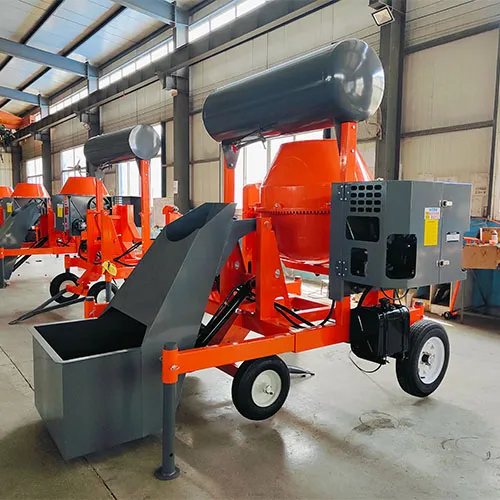

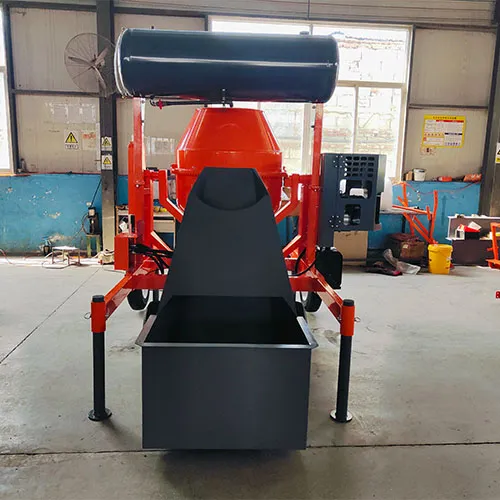

          FD Model Concrete Mixer
          FD Model Concrete Mixer
          FD Model Concrete Mixer
          FD Model Concrete Mixer
          FD Model Concrete Mixer
          FD Model Concrete Mixer
          FD Model Concrete Mixer
        • Model No.500L600L700L800L
          Concrete MixerDrum Capacity500L600L700L800L
          Drum Mouth566mm566mm600mm600mm
          Drum Max.Dia.900mm900mm1000mm1000mm
          Drum Height920mm1040mm1075mm1205mm
          Water Tank270L270L290L290L
          Hopper Capacity220L240L260L260L
          Feeding SystemHydraulic Control
          Discharge SystemHydraulic Control
          RPM of Drum25
          Lower Drum Thickness4mm
          Upper Drum Thickness3mm
          Productivity10-20m³/h12-22m³/h18-26m³/h
          Dimension2620x2100x24402670x2100x24402760x2200x2600
          EngineDiesel engine9HP
          Gasoline engine9HP
          Electric motor4KW
          Starting SystemRecoil / Electric
          Unit PackageNet Weight630kg650kg680kg700kg
          Gross Weight780kg800kg830kg850kg
          Package Size2090x1430x20102090x1430x21002200x1550x21602200x1550x2200
          Container Loading20GP4444
          40HQ9888

        • Product Features

          Durable construction

          The concrete mixer is built with high-quality materials, ensuring its longevity and reliability.

          Efficient mixing

          With its powerful motor and advanced mixing mechanism, the mixer guarantees a thorough and homogeneous mixing of cement, aggregates, and water.

          Adjustable speed

          The mixer allows you to control the speed of mixing, providing flexibility to meet different project requirements.

          Easy to use

          The user-friendly design and intuitive controls make operating the concrete mixer a hassle-free experience.

        • Application

          Urban Construction Projects

          Ideal for space-constrained city sites requiring quiet, dust-controlled operation. Ensures continuous concrete supply for skyscrapers, subway stations, and commercial complexes while meeting strict urban environmental standards.

          Rural Development Sites

          Compact design and diesel-power options overcome limited grid access. Simplified operation enables local crews to efficiently build farm roads, irrigation systems, and residential communities.

        • Customer Cases

          Urban Infrastructure

          Urban Infrastructure Project in the Philippines

          A contractor in Manila was building a high-rise residential tower on a space-constrained urban site with strict noise and dust regulations. CHICCA supplied 400L electric mixers with quiet operation and compact mobility, enabling on-site batching with minimal disruption. The mixers improved construction speed and reduced reliance on external concrete supply.

          Rural

          Rural Development Project in Kenya

          For a village development project in remote Kenya, the local government required off-grid mixing solutions. CHICCA provided diesel-powered 500L mixers that were easy to operate and move between job sites. Local workers quickly adapted, completing road and housing work efficiently despite limited power and infrastructure.

          Bridge Repair

          Emergency Bridge Repair in Brazil

          After a flood destroyed a rural bridge in Brazil, the local emergency team needed fast, mobile concrete mixing support. CHICCA’s 260L trailer mixers were delivered quickly and deployed on-site. Their mobility and ease of use helped the team restore the bridge in just 10 days under urgent conditions.
